Engine type: 2x GM (Detroit) series 6/71 diesel model 6086
Cylinders: 6x inline
Horsepower: 219 horsepower (163 kW)
Fuel capacity: 250 gallons (1137 litres)
Seating capacity: 80
Maximum Speed: 55 mph (88 km/h)

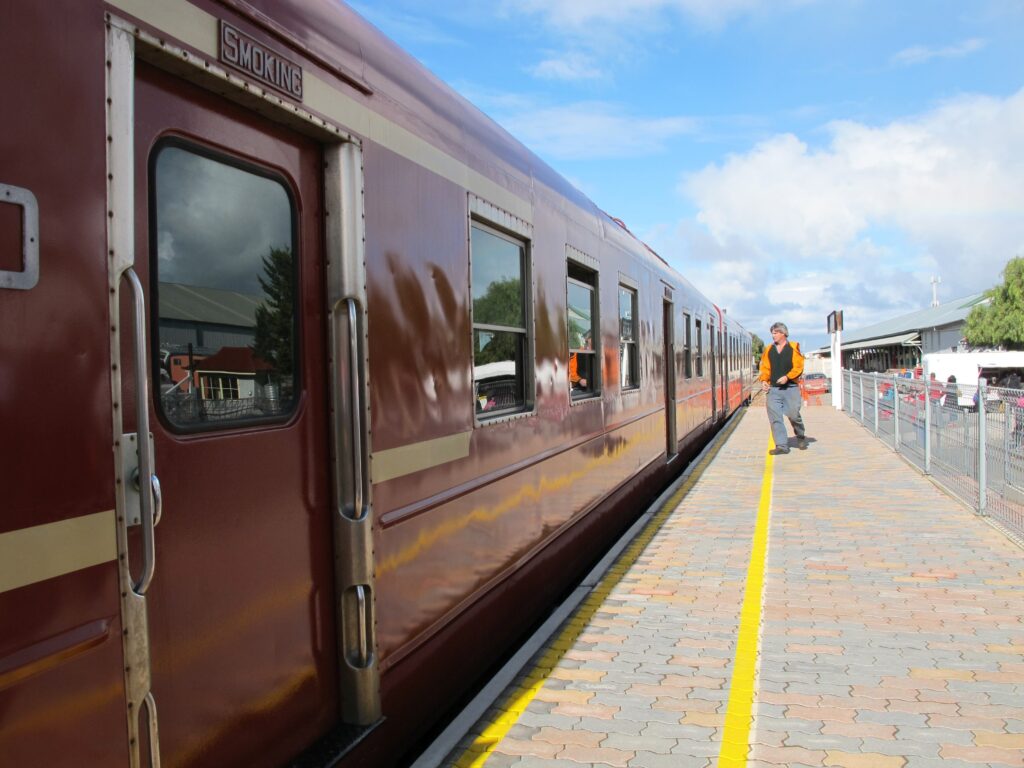

In 1954 the Islington Workshops of the South Australian Railways constructed diesel railcars for use on the Adelaide suburban service. Two designs were chosen, the 300 class, with a driving station at one end and the 400 class, which had a driving station at each end. The body of each car consisted of a fabricated steel framework to which a steel skin was welded. Original livery was satin maroon body, silver roof and black bogies, though this was later changed to standard suburban red.
Fabricated bogies manufactured by the Islington Workshops were used, though some cars did receive converted bogies that had previously been under Overland carriages.

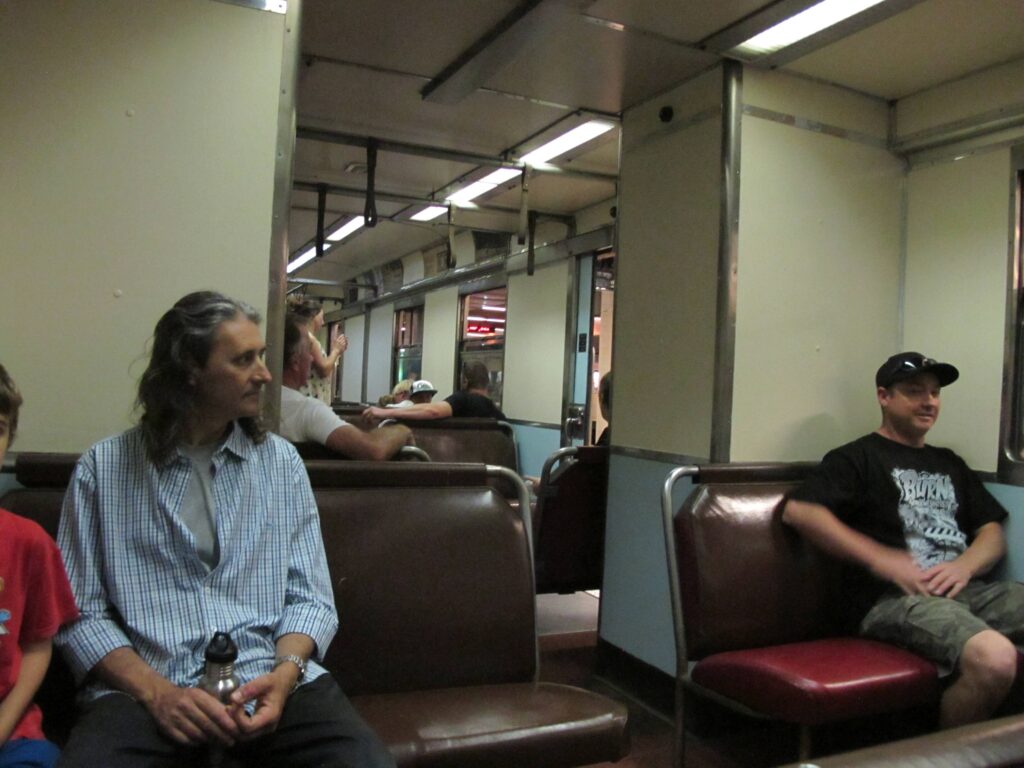

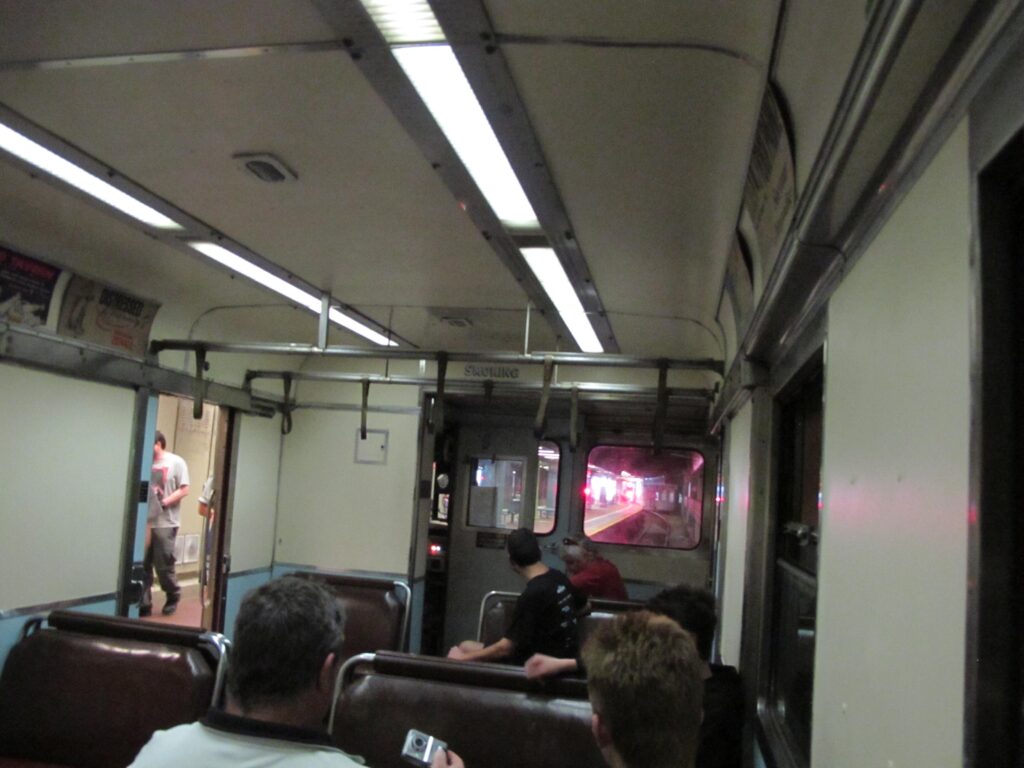

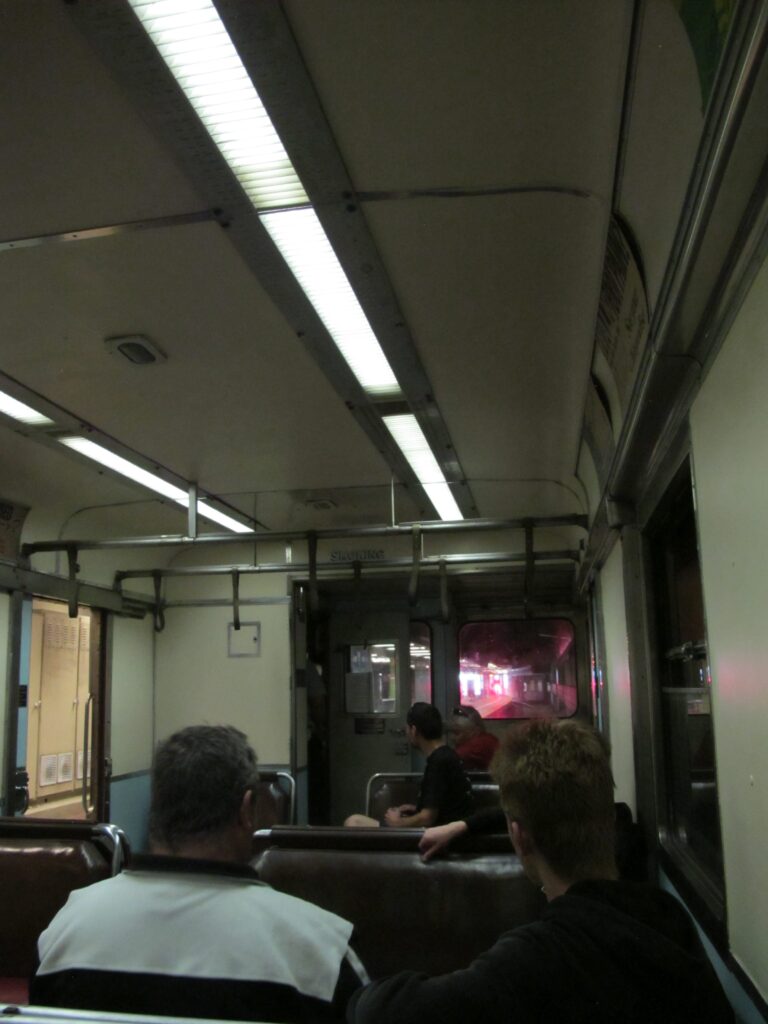

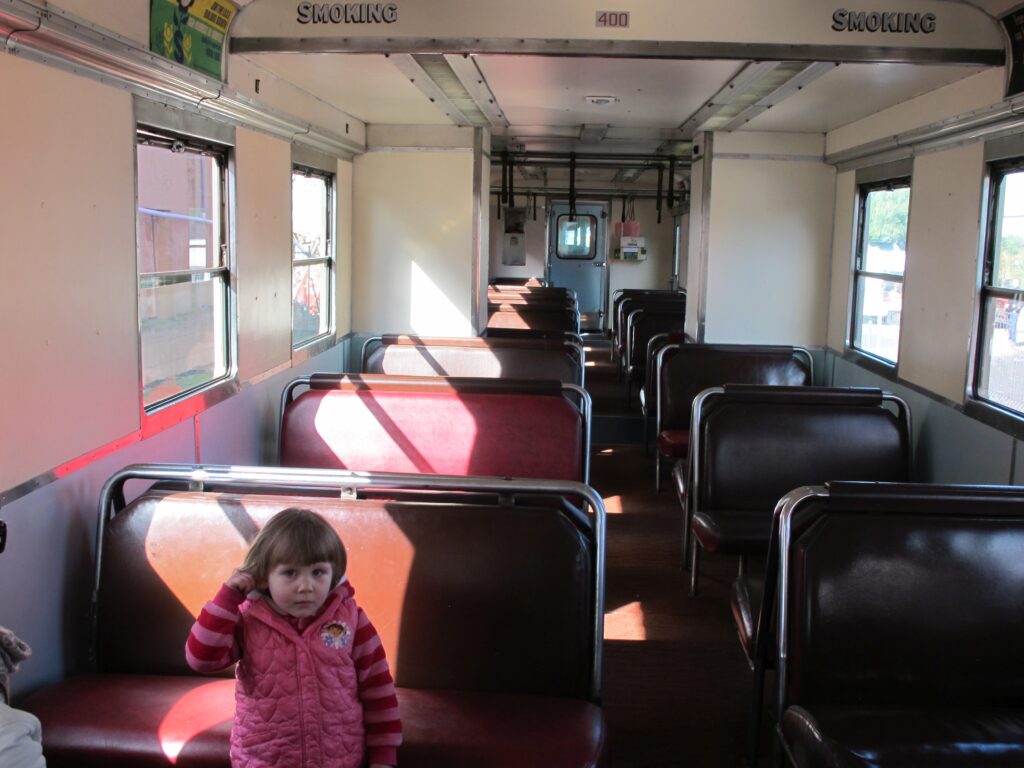

Each compartment in the passenger saloon was fitted with cold cathode fluorescent tubes and low voltage emergency lighting above fixed tubular steel framed seating. Until 1961 vinyl was used for seat covering, with the main colours being cherry red and Flanders blue, but green, brown and grey sometimes appeared. From 1968, to match the green side walls, a special blue-green upholstery was used.
Interior walls were lined with plastic laminate in blue linen, tan linen or plain green. Flooring was either red linoleum or blue-yellow chequer board vinyl tiles.
Traction power was provided by two six-cylinder diesel engines of the lay-over type. A hydraulic torque converter and gearbox connected the drive shaft to each bogie.
A total of 74 units of the 300 class, and 37 of the 400 class were constructed between 1955 and 1971. Nicknamed Red Hens by the public, this type of railcar exclusively ran the Adelaide suburban service until the late 1970s when new railcars were purchased. Withdrawal of cars commenced in the mid-1980s with the last units remaining in service until late 1996.

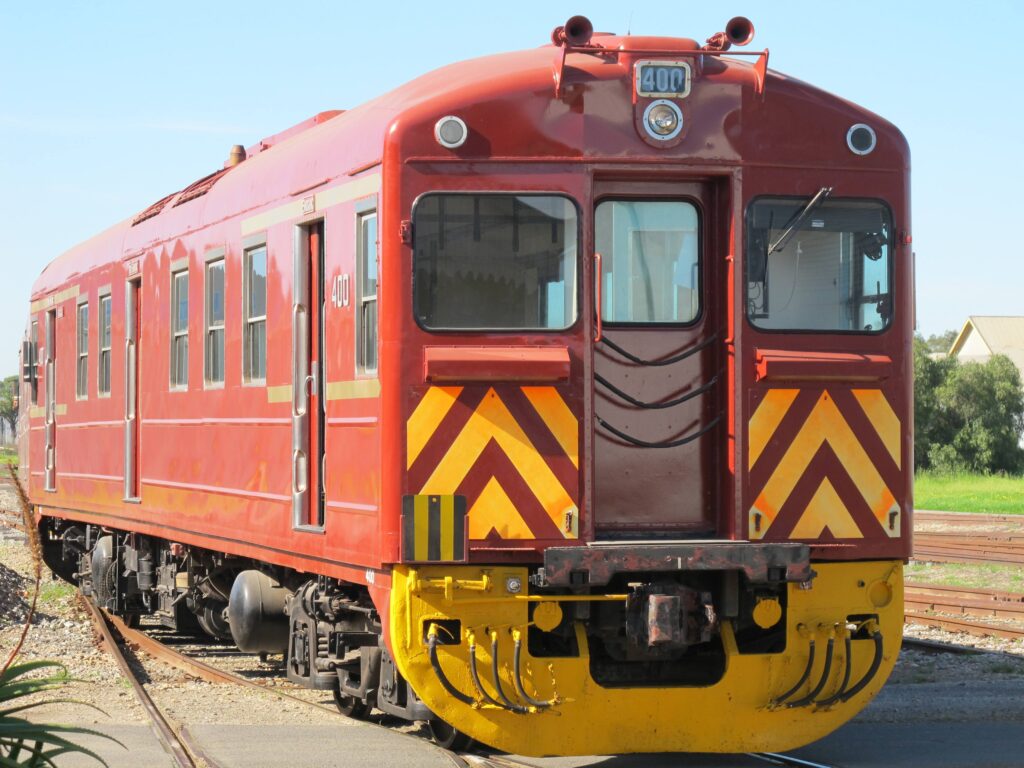

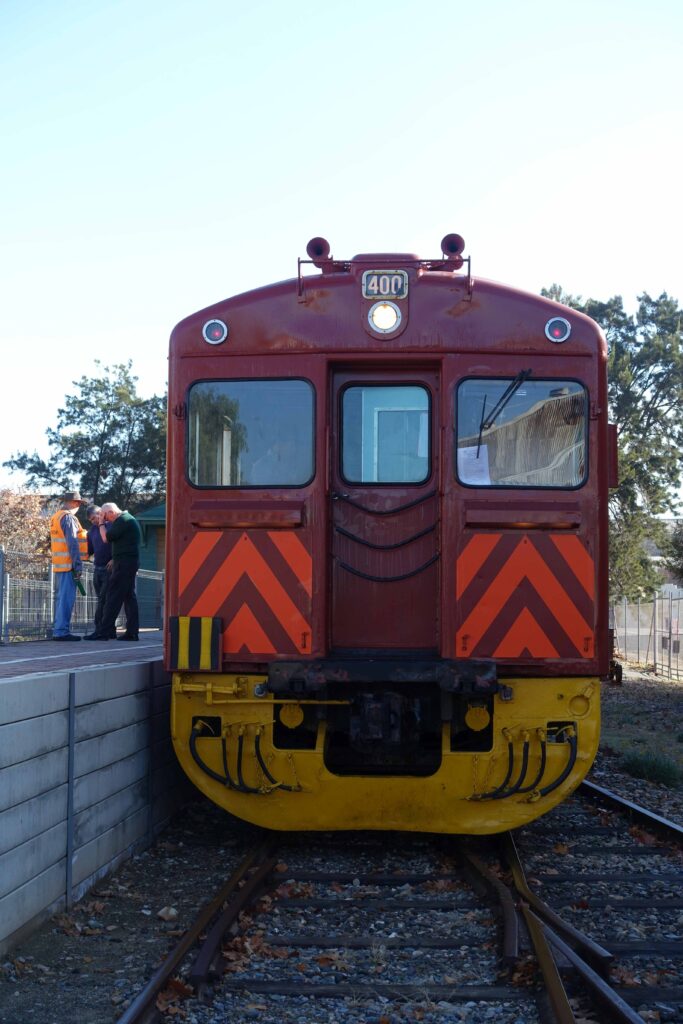

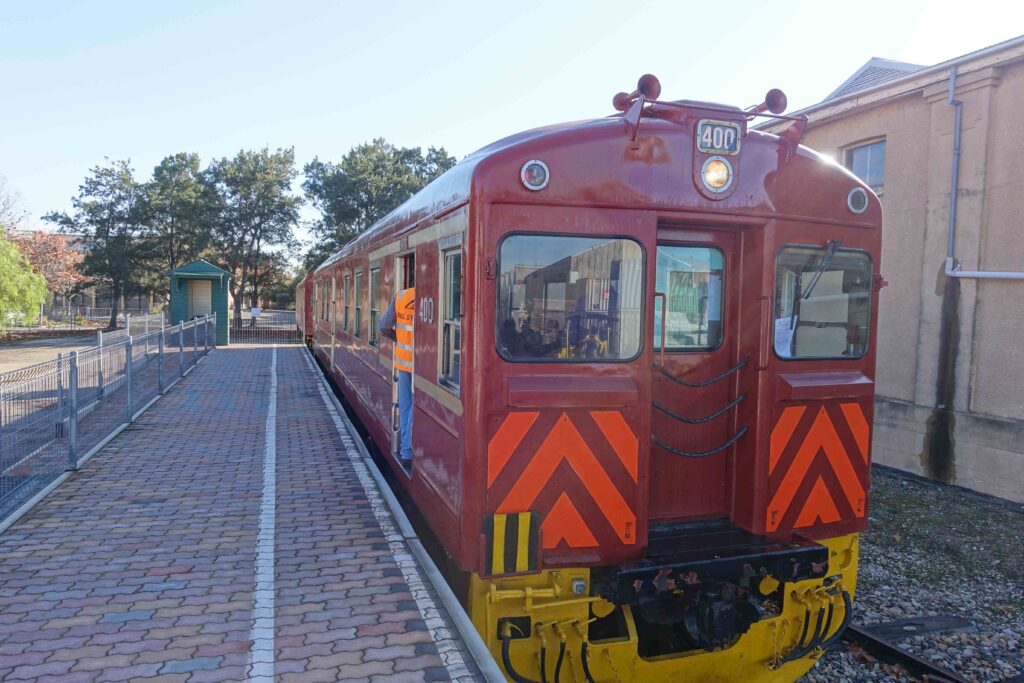

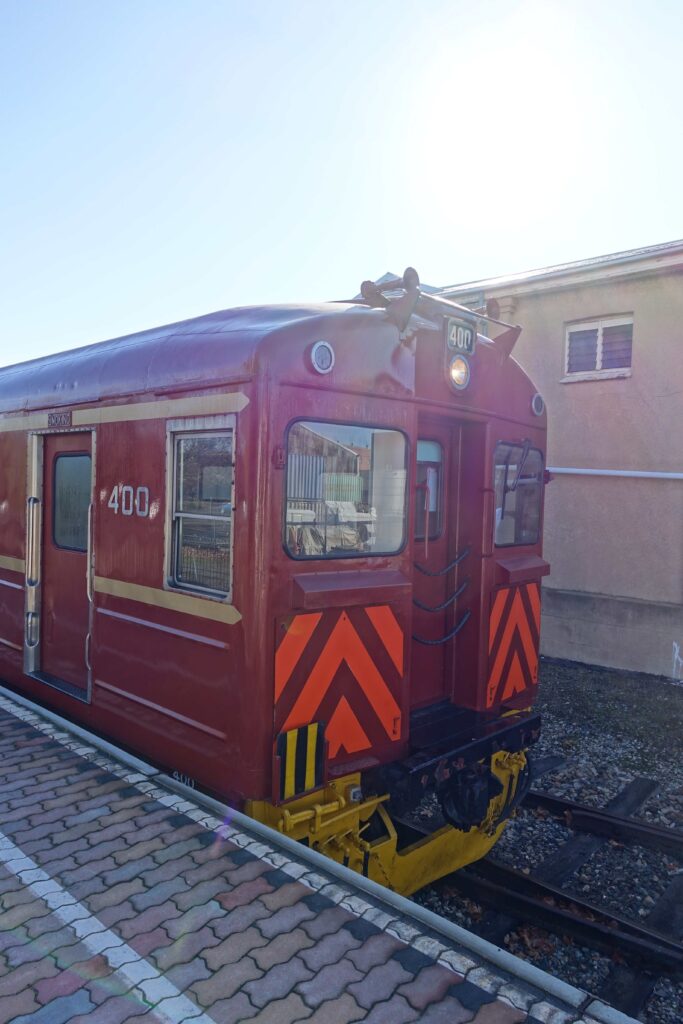

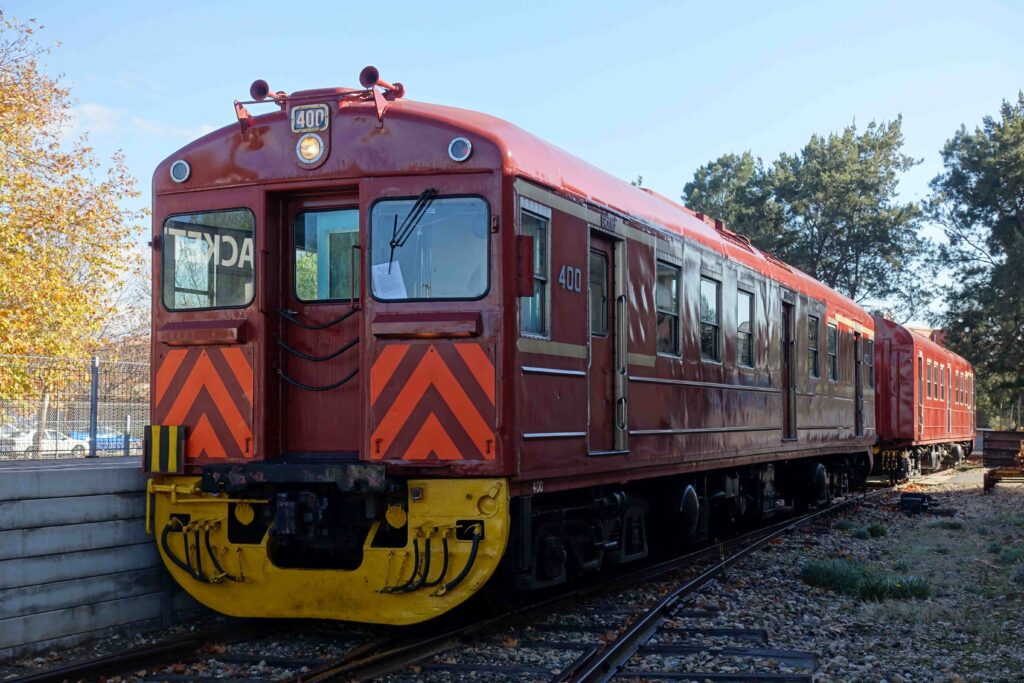

15/12/1996 Woodville Redhen railcar 400 – National Railway Museum, Port Adelaide, General Print Collection (AC13803.jpg)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139189) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139197) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)7.09.2013 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1110520) 7.09.2013 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139196) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139195) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139194) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139193) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139192) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139191) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139190) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1139188) 4.6.2016 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station (275-373-p1120875) 6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station (275-373-p1120874) 6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station (275-373-p1120872) 6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station (275-373-p1120871) 6.10.2014 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 interior at Adelaide Station – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)7.09.2013 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 (275-373-p1110519) 7.09.2013 National Railway Museum – Port Adelaide – South Australia redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109549) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109548) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109547) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior (275-373-p1109503) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109498) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109497) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109496) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109495) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109494) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109493) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109492) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109491) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109490) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109489) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109488) 21.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior with Ring Master (275-373-p1109487) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior with Ring Master – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior with Ring Master (275-373-p1109486) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 interior with Ring Master – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + Ticket Collector (275-373-p1109485) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + Ticket Collector – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109484) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 (275-373-p1109464) 14.7.2013 National Railway Museum – Port Adelaide – South Australia Circus Train Event – Redhen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)14.7.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 (275-373-p1102835) 14.7.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed (275-373-p1100294) 12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed (275-373-p1100293) 12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed (275-373-p1100292) 12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed (275-373-p1100291) 12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed (275-373-p1100290) 12.4.2012 National Railway Museum – Port Adelaide – South Australia Redhen railcar 400 being washed – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 (275-373-p1094022) 25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 + 321 (275-373-p1094018) 25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 + 321 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 (275-373-p1094017) 25.4.2011 National Railway Museum – Port Adelaide – South Australia RedHen railcar 400 – National Railway Museum, Port Adelaide, Chris Drymalik Digital Camera Photos (CRS 275-373)Sleeps Hill Redhen railcar 400 class – National Railway Museum, Port Adelaide, Colour Slide Collection (CRS 1-3)– Blakwood Redhen railcar 400 – National Railway Museum, Port Adelaide, General Print Collection (AK23395.jpg)15/12/1996 PDSRM Redhen railcar 400 in Jacketts siding – National Railway Museum, Port Adelaide, General Print Collection (MT15277.jpg)15/12/1996 PDSRM Redhen railcar 400 – National Railway Museum, Port Adelaide, General Print Collection (MT13954.jpg)c 1960/70 Semaphore station SAR Redhen railcar 400 class – National Railway Museum, Port Adelaide, General Print Collection (ACX09656.jpg)8/10/1995 Blackwood station Redhen railcar 400 & loco F251 – National Railway Museum, Port Adelaide, General Print Collection (AK06916.jpg)
